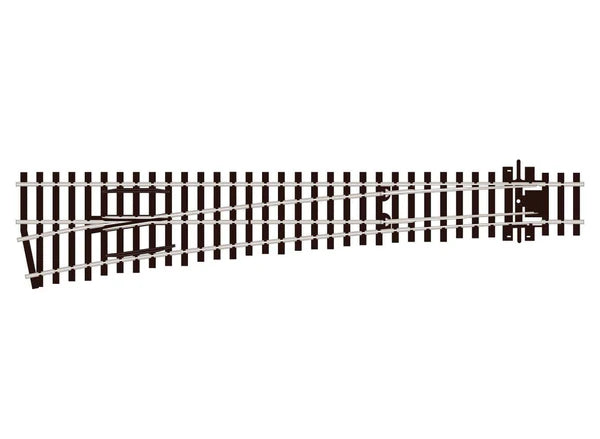

PECO SL-E189 Streamline OO/HO gauge code 75 flat bottom Electrofrog large-radius left-hand turnout

Track system:  PECO HO/OO Code 75

Gauge:  16.5 mm

Rail height:  Code 75 (0.75" ≈ 1.9 mm)

Frog type:  Electrofrog.  See 'Frogs and turnout/point wiring' page.

Length:  219 mm

Frog angle:  12°

Radius:  914 mm

Corresponding ladder track centre-to-centre separation:  45 mm

PECO SL-E195 product page

PECO SL-E195 plan sheet

See also PECO SL-E196 HO/OO Code 75 medium radius right-hand Electrofrog turnout/point
